OutOfBandFidoUafAuthState

nevisAuth 4.38.x HTTP client changes

The new HTTP client shipped with nevisAuth 4.38.0.12 will likely require changes in this auth state configuration, specifically in the area of certificate configuration and handling.

Visit Appendix H for additional information.

Introduction and overview​

The OutOfBandFidoUafAuthState AuthState manages the UAF authentication in a nevisFIDO server by invoking the Dispatch Token Service. The typical use case is that a client wants to access an application using a desktop, whereas the authentication is done with a mobile device. In this case, a token is dispatched to the mobile device, where the user authenticates.

The UAF authentication process including nevisAuth and the OutOfBandFidoUafAuthState is as follows:

  1. The OutOfBandFidoUafAuthState sends a dispatch target query to retrieve the dispatch targets defined for the user. The fidoUafUsername attribute is used to generate this request. The value of this attribute (that is, the username) can be retrieved in different ways:

    • By authenticating the user through an AuthState that is configured before the OutOfBandFidoUafAuthState. The username value can be a variable expression using notes.

    • The HTTP client provides the FIDO UAF username directly in the incoming request as JSON or FORM parameters. The username value can be a variable expression using inargs.

  2. The nevisFIDO server returns the list of dispatch targets to nevisAuth, which forwards the dispatch targets to the client. If no dispatch targets are found, nevisAuth returns an empty list.

  3. The client selects one of the dispatch targets, if required in interaction with the user. Subsequently, the client sends a request with the dispatch target ID and the username to nevisAuth.

  4. The OutOfBandFidoUafAuthState sends a dispatch token request to the nevisFIDO server with the provided dispatch target ID. nevisFIDO uses the Dispatch Token Service for this. In the context of transaction confirmation, the OutOfBandFidoUafAuthState can be configured with a list of FIDO UAF transaction. This list of transaction will be sent to the nevisFIDO server as part of the GetUAFRequest

  5. The nevisFIDO server returns a dispatch token response to nevisAuth, which forwards the response to the client. The dispatch token response contains a FIDO UAF session ID. See Example Response Using FCM Dispatcher for a response example.

  6. The client queries nevisAuth. It depends on the configuration of the fidoUafSessionId property in the OutOfBandFidoUafAuthState whether the client must provide this property. By default, the client is required to send the fidoUafSessionId property in a POST with a payload like this:

    { "fidoUafSessionId" : "asdetwdIDsdfsewSAdsds09823423sdfsd9ds" }

  7. The OutOfBandFidoUafAuthState processes the authentication status query, by asking the nevisFIDO server whether the user was actually authenticated. If so, the OutOfBandFidoUafAuthState has a transition ok. nevisAuth sends a response to the client, including a payload like this:

    {
      "status" : "succeeded",
      "timestamp" : "2018-12-14T20:37:48.556Z",
      "tokenInformation" : {
        "tokenResult" : "tokenRedeemed",
        "dispatcherInformation" : {
          "name" : "firebase-cloud-messaging",
          "response" : "successful dispatch"
        }
      },
      "uafStatusCode" : 1200,
      "userId" : "123122233",
      "authenticators" : [ {
        "aaid" : "ABBA#0001"
      } ]
    }

  8. The client must send another request to nevisAuth to continue with the authentication process.

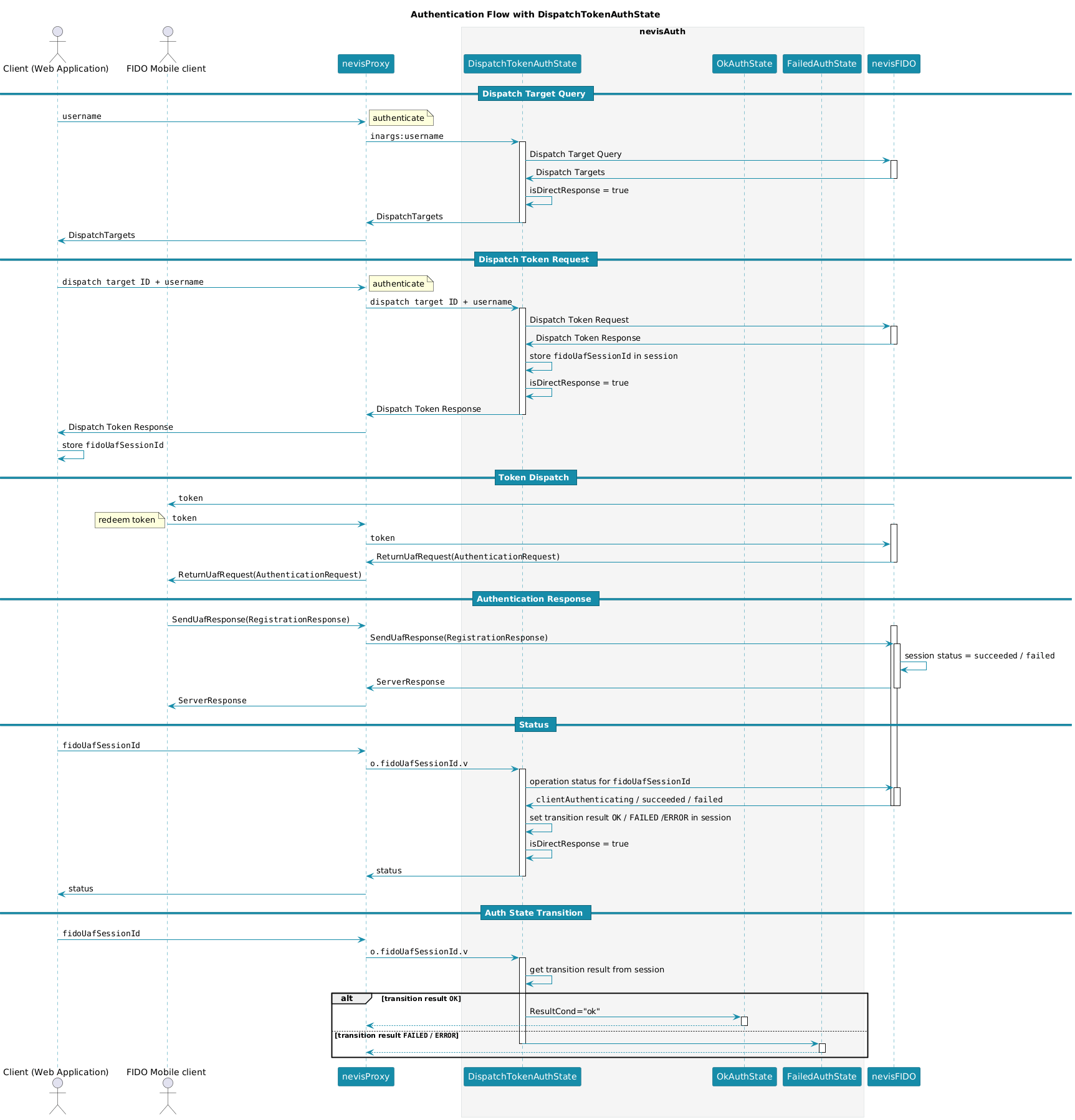

title="OutOfBandFidoUafAuthState example flow"
info

To allow chained UAF AuthStates, nevisAuth will remove the stored FIDO UAF session ID every time an AuthState transition occurs in the OutOfBandFidoUafAuthState.

As a consequence, the HTTP client will receive the authenticated status only once for a given session ID. The next queries with the same session ID will return an unknown status. This is to prevent the following undesired situation:

Suppose a given configuration consists of the two chained UAF AuthStates AuthState1 and AuthState2. If the user authenticates in AuthState1, the AuthEngine will make AuthState2 the current AuthState. If the client sends an authentication status request with the session ID used in AuthState1, and the session has not been cleaned up, then the user will be considered authenticated in AuthState2.

Restarting the FIDO UAF Authentication​

To be able to retrieve the authentication status, nevisAuth requires the FIDO UAF session ID. If the fidoUafSessionId property is not provided in the nevisAuth configuration, it must be provided as part of the request (using the fidoUafSessionId JSON attribute).

caution

In any case where a FIDO UAF session ID cannot be associated with the client, the client will initiate an authentication flow, even though an authentication was already triggered. If you configure fidoUafSessionId in nevisAuth, the client may lose this ability to control redundant authentications.

The main reasons for requiring the session ID are:

  • Requiring the session ID adds a security layer to what already is provided by nevisAuth and nevisProxy. Stealing the cookie is not enough to hijack the authentication session. An attacker must also have access to the session ID returned in a previous request by nevisAuth. That is, by stealing the cookie, the attacker can prevent the user from being authenticated by restarting the FIDO UAF authentication (see the point below). However, without the session ID the attacker will not be able to authenticate.

  • Requiring the session ID allows a client application to restart the FIDO UAF authentication at any point in time. This can help to improve the user experience.

By default, sending a request without a FIDO UAF session ID is enough to restart the FIDO UAF authentication (see step 1 in the previous section). This can be useful in different scenarios, for instance:

  • The application requiring authentication is executed in the browser in a laptop whereas the FIDO UAF authentication is done in a mobile device (out-of-band scenario). Suppose the browser polls nevisAuth for the authentication status, but the authentication is still going on after a certain time. Then the application can ask the user to trigger a new FIDO UAF authentication by confirming a message. Note that the browser application could also decide to restart the entire authentication, by removing the nevisAuth cookie. However, this could be annoying for the end user.
  • The FIDO UAF client is the one interacting with nevisAuth. The FIDO UAF client detects an error in the interaction with the user. Instead of restarting the entire authentication, the FIDO UAF client can decide to restart only the FIDO UAF authentication.

Security Considerations​

The OutOfBandFidoUafAuthState is able to query dispatch targets for a non-authenticated user. This means that dispatch target information will be exposed to non-authenticated users. This is possible even if you configured the dispatch target query such that it requires SecToken authorization.

If you consider exposing information to non-authenticated users as a concern, not use the OutOfBandFidoUafAuthState as a first factor authentication. That is, the OutOfBandFidoUafAuthState should not be the first AuthState in the authentication flow. Instead, you could use the OutOfBandFidoUafAuthState as the second factor authentication. In this case, the username is provided by the first factor authentication, typically a username/password-based AuthState.

The OutOfBandFidoUafAuthState AuthState requires the use of a dispatch target, even though some nevisFIDO dispatchers do not require it. The reason behind is security: when a dispatch target is used, the contents that are dispatched are encrypted, which avoids a number of attacks (for instance QRLJacking attacks using the QR Code Dispatcher).

Channel linking​

In out-of-band scenarios the end-user owns two devices. One device (typically a desktop computer or laptop) that tries to access a protected system, or to perform a protected operation, such as a bank transaction. Another device (typically a mobile device) which is in charge of performing the authentication (or part of it) required to access the protected resource. The channel linking refers to a mechanism that allows the end-user to verify that the authentication requested in the mobile device corresponds to the operation triggered by the device trying to access the protected system.

The channel linking can be configured using the channelLinkingMode AuthState attribute.

info

Read more about channel linking in the Concept and Integration Guide

Number matching channel linking​

Currently, the only channel linking mode supported by the Nevis Mobile Authentication is number matching. With this channel linking mode, when the client requiring authentication is redirected to nevisAuth, and the OutOfBandFidoUafAuthState is invoked, the AuthState will generate a random string consisting of two digits. This string is sent to the user’s mobile device (the one performing FIDO UAF authentication) encrypted, and the OutOfBandFidoUafAuthState will also include the generated random string in the HTTP response that is sent to the user’s laptop.

When the mobile device receives the message (typically with a push notification when using the FCM Dispatcher, it decrypts it and presents the generated random string to the user. The random string is also be presented in the device (laptop) trying to access the protected resource. The user is asked to verify that both strings match before proceeding with authentication.

To enable the number matching channel linking, set visualString as the value for the channelLinkingMode configuration attribute.

info

When using the QR Code Dispatcher, there is no added value to use the number matching linking, because the QR code scan implicitly links the device triggering the operation (laptop) to the authenticating device (the mobile).

The same thing applies to the link dispatcher, which is used when both the device requiring authentication and the device containing the authenticating application are the same.

Channel linking payload​

The format of the channel linking information sent to both user devices (typically laptop and mobile device) is described in the table below:

AttributeTypeDescriptionOptional
channelLinking.modeStringThe channel linking verification mode. Currently only visualString is supported.false
channelLinking.verificationContentStringThe data used to do the channel linking.false

Example:

{
    "channelLinking": {
        "mode": "visualString",
        "content": "42"
    }
}

See the encrypted push message for an example on how the channel linking information is transmitted inside the push notification message to the end-users mobile device.

See the response with the dispatch response for an example on how the channel linking information is sent back to the end-users laptop in the HTTP response.

Description​

The following table and chapters describe the characteristics of the AuthState.

TopicDescription
Classch.nevis.auth.fido.uaf.authstate.OutOfBandFidoUafAuthState
LoggingFidoUaf
Auditingnone
Markernone
Methodsprocess

Properties​

  • fidoUafUsername (string, optional)

    Username of the user in the nevisFIDO server.

    Examples:

    • ${inargs:username}
    • ${inargs:o.username.v}: Provides the username in the request parameter username. For instance if the client sends this payload in the HTTP request { "username" : "jsmith" }, the username that will be used is jsmith.
    info

    The fidoUafUsername property value might be required several times when contacting the nevisFIDO server (see the Input and Output below for details). If the username is provided by a previous AuthState and not in the HTTP request, do not use notes to store and pass the fidoUafUsername property value. This is because the lifetime of notes is limited to the current request. In this case, use another mechanism, such as the session with the sess keyword.

    Optional value

    The property is marked as optional. However, the presence of the value depends on the use case:

  • fidoUafServerUrl (string, required)

    Base URL of the nevisFIDO server. You cannot use variable expressions to specify this value.

    Example: https://siven.ch:8443/nevisfido.

    With this configuration, the FIDO UAF AuthState will send a dispatch target request to https://siven.ch:8443/nevisfido/token/dispatch/authentication.

  • dispatchTargetId (string, optional)

    The identifier of the dispatch target to which nevisFIDO must send the token.

    Default value: ${inargs:o.dispatchTargetId.v}. With this value, the client must send the dispatch target ID using a POST with the following payload: { "dispatchTargetId" : "the_dispatch_target_ID" }

  • dispatcher (string, optional)

    The identifier of the dispatcher that must be used by nevisFIDO to send the token. If no dispatcher is provided, then the dispatcher associated with the dispatch target specified with the attribute dispatchTargetId will be used. The supported dispatchers are: firebase-cloud-messaging, png-qr-code and link.

    Default value: ${inargs:o.dispatcher.v}. With this value, the client can send the dispatcher using a POST with the following payload: { "dispatcher" : "png-qr-code" } If you want to systematically use the dispatcher associated with the dispatch target ID, you can provide an empty String as value: <property name="dispatcher" value=""/>

  • dispatchInformation (string, optional)

    The dispatch information that will be sent to the nevisFIDO dispatcher. See Dispatch Token Request Format for details.

    Default value: ${inargs:o.dispatchInformation.v}. With this value, the client must send the dispatch information using a POST with the following payload: { "dispatchInformation" : { "some": "information for the dispatcher" }

  • channelLinkingMode (string, optional)

    The channel linking verification mode. Currently, only two modes are supported:

    • none

    No channel verification information will be generated.

    • visualString

    A random two digit string is generated to perform visual channel linking. See channel linking for details.

    Default Value: none

    info

    This is a convenience attribute to generate the channel linking information, send it along the contents of the dispatchInformation attribute and return the generated information in the response. The information of the dispatchInformation attribute will take precedence over the contents of this attribute.

  • fidoUafSessionId (string, optional)

    The session ID required to query nevisFIDO for the status of an ongoing authentication.

    Default value: ${inargs:o.fidoUafSessionId.v}.

    When this parameter is not set, the client must maintain and send the FIDO UAF session ID to nevisAuth using a POST with the following payload: { "fidoUafSessionId" : "the_session_ID" }

  • fidoUafTransactions (string, optional)

    The transactions that can be provided to nevisFIDO in the GetUAFRequest. The string represents a JSON array with the transactions as defined in the FIDO UAF Protocol Specification.

    Example: { "contentType": "text/plain", "content": "VGhlIHRyYW5zYWN0aW9uIGNvbmZpcm1hdGlvbiB0ZXh0" }

  • fidoUafPolicy (string, optional)

    Name of the policy to be used for the authentication. If no value is specified the default policy will be used. See policy configuration for more information regarding configuring multiple policies.

    This can be used to restrict the authenticators that can be used by the client to authenticate. For example, if the operation is sensible and biometric authentication is considered to be stronger than PIN, here you can specify a policy that only allows biometric authenticators.

  • httpclient.* (string)

    Configure the outgoing HTTP communication towards nevisFIDO. For a list of valid HTTP properties, see HTTP Client configuration.

Input​

Username​

If only the username is provided as input, the OutOfBandFidoUafAuthState will send a dispatch target query to nevisFIDO to retrieve the available dispatch targets for this user.

Username and dispatch target ID​

If the dispatch target ID and the username are included in the input (and no FIDO UAF session ID is provided), the OutOfBandFidoUafAuthState will send a dispatch token request to the nevisFIDO server to trigger an authentication. The dispatch target ID and username can be provided using a POST with the following payload: { "dispatchTargetId" : "the_dispatch_target_ID", "username" : "the_user_name" }

FIDO UAF session ID​

If the FIDO UAF session ID is provided as input, the OutOfBandFidoUafAuthState will query the nevisFIDO server to check whether the session with the provided ID is authenticated. The FIDO UAF session ID can be provided using a POST with the following payload: { "fidoUafSessionId" : "the_session_ID" }

info

This is the equivalent of sending the session ID in the o.fidoUafSessionId.v attribute of the inargs.

Transitions​

  • error

    If an error occurred in the communication with nevisFIDO.

  • failed

    If nevisFIDO reports a failed authentication (in response to the client’s query for the authentication status).

  • dispatchFailed

    If nevisFIDO reports that the token dispatch failed.

  • ok

    If nevisAuth detects a successfully authenticated user in nevisFIDO. In this case, nevisFIDO responses positively to the client’s query for the authentication status.

Output​

Dispatch targets​

If the OutOfBandFidoUafAuthState generated a query dispatch target request, the output is a list of dispatch target objects (coming from the nevisFIDO server in response to the request). The client must identify the correct dispatch target in this list, that is, the target to dispatch the token to.

Dispatch token response​

If the OutOfBandFidoUafAuthState generated a dispatch token request, the output is the dispatch token response coming from the nevisFIDO server. If channel linking has been configured, then the channel linking information will also be included. The client must retrieve the session ID from the dispatch token response. The session ID is needed to poll the authentication status.

Authentication status​

If the OutOfBandFidoUafAuthState queried nevisFIDO for the authentication status of the session, the output is a JSON object describing the status.

Errors​

none

Notes​

  • ch.nevis.auth.fido.uaf.authenticators

Contains the JSON serialized FIDO UAF authenticators that were used to successfully complete the FIDO UAF authentication operation at nevisFIDO. Example value:

[{"aaid":"AAAA#2222","keyId":"a2V5SWQy"},{"aaid":"AAAA#1111","keyId":"a2V5SWQx"}]

Example​

The AuthState in the following example integrates FIDO UAF authentication in nevisAuth using the nevisFIDO server located in siven.ch with port 8443. The FIDO UAF username is retrieved from the username parameter of the notes.

<AuthState name="OutOfBandFidoUafAuthState" class="ch.nevis.auth.fido.uaf.authstate.OutOfBandFidoUafAuthState"
           resumeState="false">
    <ResultCond name="ok" next="AuthDone"/>
    <ResultCond name="error" next="AuthError"/>
    <ResultCond name="failed" next="AuthError"/>
    <property name="fidoUafUsername" value="${sess:username}"/>
    <property name="fidoUafServerUrl" value="https://siven.ch:8443/nevisfido"/>
    <property name="httpclient.tls.truststoreRef" value="DefaultKeyStore"/>
</AuthState>
info

The OutOfBandFidoUafAuthState does not display a GUI. This means that defining GUI elements or setting the property final to "true" will have no effect.

Request and Response Examples​

Request Body Providing Username​

It is assumed that the fidoUafUsername attribute value is ${inargs:o.username.v}.

{
  "username": "jeff"
}

Response Containing Dispatch Targets for User​

HTTP/1.1 200 OK
Date: Mon, 25 Jul 2022 11:30:35 GMT
Content-Type: application/json
Transfer-Encoding: chunked
Content-Length: 117

{
  "dispatchTargets" : [ {
    "id" : "b4ad2a81-5a88-413d-885f-6a1781dbf5a3",
    "name" : "My Mobile Phone"
  } ]
}

Request Body Providing dispatchTargetId​

It is assumed that the fidoUafUsername attribute value is ${inargs:o.username.v} and the dispatchTargetId attribute value is ${inargs:o.dispatchTargetId.v}.

{
  "username": "jeff",
  "dispatchTargetId": "054a0272-0822-4dac-9c7b-42a27174d287"
}

Response with the Dispatch Response​

{
  "dispatchResult" : "dispatched",
  "dispatcherInformation" : {
    "name" : "firebase-cloud-messaging",
    "response" : 0
  },
  "sessionId" : "0a97d769-136e-4b9a-a187-e2fe09437d64",
  "token" : "02ebf804-a25a-4482-a06e-1f141b5946a6",
  "channelLinking" : {
    "mode" : "visualString",
    "content" : "AB"
  }
}

Status Request Body​

It is assumed that the fidoUafSessionId attribute value is ${inargs:o.fidoUafSessionId.v}.

{
  "fidoUafSessionId": "1c8a5b00-165c-4a63-ae13-2e03fb7f57ce"
}

Status Response Example​

{
  "status" : "succeeded",
  "timestamp" : "2022-07-25T11:30:47.439Z",
  "tokenInformation" : {
    "tokenResult" : "tokenRedeemed",
    "dispatcherInformation" : {
      "name" : "firebase-cloud-messaging",
      "response" : "successful dispatch"
    }
  },
  "uafStatusCode" : 1200,
  "asmStatusCode" : 0,
  "clientErrorCode" : 0,
  "userId" : "userId",
  "authenticators" : [ {
    "aaid" : "ABBA#0001"
  } ]
}

Authentication Retry / Fallback Example​

During the out-of-band authentication, there are a number of issues that can occur before the user can proceed with the authentication in the mobile device. For instance, if the FCM Dispatcher is being used, some of these potential problems are: the message could not be dispatched because there is a temporary network error between nevisFIDO and the Firebase infrastructure, the message could be displayed but did not reach the authenticating mobile device, the user ignored inadvertently the push message that reached the mobile device, etc.

When one of these situations occur, a new authentication can be triggered as described in Restarting the FIDO UAF Authentication. For example, if the first dispatcher that was used was the FCM dispatcher, the FCM dispatcher can be used again, or it can be chosen to use another dispatcher, like the QR Code Dispatcher as an alternative/fallback; the QR code dispatcher might be considered less user-friendly because it requires more interaction from the user (the user must point the mobile device to do the QR code scan), but it does not have some of the pitfalls of the FCM dispatcher, like the network connectivity issues mentioned above.

In this chapter, the client (typically in a laptop or desktop) that interacts with Nevis (and in particular with nevisAuth), will be referred as HTTP client.

Identifying if an Authentication Restart is Needed​

It is the responsibility of the HTTP client communicating with nevisAuth to decide whether another FIDO UAF authentication should be triggered (using the initial dispatcher or a new one). The criteria to be followed (time to wait before triggering the new authentication, whether the new authentication triggering requires the user explicit consent or not, etc.) depends on the desired user interaction. This section just hints which attributes in the responses returned by the OutOfBandFidoUafAuthState can be used to determine to start a new authentication or not.

There are two main reasons to initiate a new FIDO UAF authentication:

  • The dispatch failed. This situation can be identified by the HTTP client by checking the value of the dispatchResult attribute of the dispatch response: if the value is not dispatched, then dispatch failed.
info

To be able to retry out-of-band FIDO UAF authentication after a dispatch failure, the out-of-band-fido-uaf-transitions dispatchFailed must either not be set to continue to another AuthState (default behaviour), or the dispatchFailed transition must be set to continue to another OutOfBandFidoUafAuthState.

  • The dispatch worked (i.e. nevisFIDO could send the message to the Firebase infrastructure), but the user did not receive the push message or did not manage to proceed with the authentication (for instance, because the push message notification was discarded). After a certain time, the HTTP client could decide (after asking directly the end-user or not) to trigger a new FIDO UAF authentication. The situation can be identified by the HTTP client by checking that the value of the status attribute of the status response is tokenCreated.
info

If the message in the initial authentication could be dispatched, the new FIDO UAF authentication must be triggered before the initial authentication fails. By failure it is meant either reaching the authentication time-out in nevisFIDO, or the user providing bad credentials in the device. Once the FIDO UAF authentication fails, the OutOfBandFidoUafAuthstate will go to the next AuthState configured for the out-of-band-fido-uaf-transitions error.

Restarting Authentication​

To restart the authentication, all the HTTP client must do is to send a new POST request without the session ID on it. In the example below the following OutOfBandFidoUafAuthState configuration is assumed. In the example the username is retrieved from the session (set by a previous AuthState, this can be used in a scenario with FIDO UAF as a second factor authentication). The dispatchTargetId and dispatcher values allow the HTTP client to provide them using a JSON payload:


<AuthState name="OutOfBandFidoUafAuthState" class="ch.nevis.auth.fido.uaf.authstate.OutOfBandFidoUafAuthState"
           final="false">
    <ResultCond name="ok" next="AuthDone"/>
    <ResultCond name="error" next="AuthError"/>
    <ResultCond name="failed" next="AuthError"/>
    <property name="fidoUafUsername" value="${sess:username}"/>
    <property name="fidoUafServerUrl" value="https://siven.ch:9443/nevisfido"/>
    <property name="httpclient.tls.trustStoreRef" value="TrustStoreForNevisFido"/>
    <property name="httpclient.tls.keyObjectRef" value="KeyStoreForNevisFido/ClientKeyForNevisFido"/>
    <property name="dispatchTargetId" value="${inargs:o.dispatchTargetId.v}"/>
    <property name="dispatcher" value="${inargs:o.dispatcher.v}"/>
</AuthState>

The HTTP client can decide to start a new FIDO UAF authentication, but instead of using FCM as dispatcher, it prefers to receive a QR code in PNG format to transfer the required information to the mobile device (i.e. use the QR Code Dispatcher). This can be done by sending a POST HTTP request with the following payload:

{
  "dispatcher": "png-qr-code",
  "dispatchTargetId": "054a0272-0822-4dac-9c7b-42a27174d287"
}

The response will look like the following:

{
  "token" : "98248c42-c9d5-4332-9b28-c3dc497df311",
  "sessionId" : "cf34f631-4180-4e85-91dc-a96dcf5aa9b8",
  "dispatchResult" : "dispatched",
  "dispatcherInformation" : {
    "name" : "png-qr-code",
    "response" : "<QR Code as PNG encoded using base64 URL>"
  }
}

The client can then simply read dispatcherInformation.response attribute, which contains the QR code in PNG format, and render the QR code, so that the end-user can scan it in the mobile device associated with dispatch target 054a0272-0822-4dac-9c7b-42a27174d287 (only the mobile device containing the dispatch target can decrypt the contents of the QR code).

Once the QR code scanned, FIDO UAF authentication will proceed in the mobile device.

Last updated on
